65' Telescopic Boom Lift

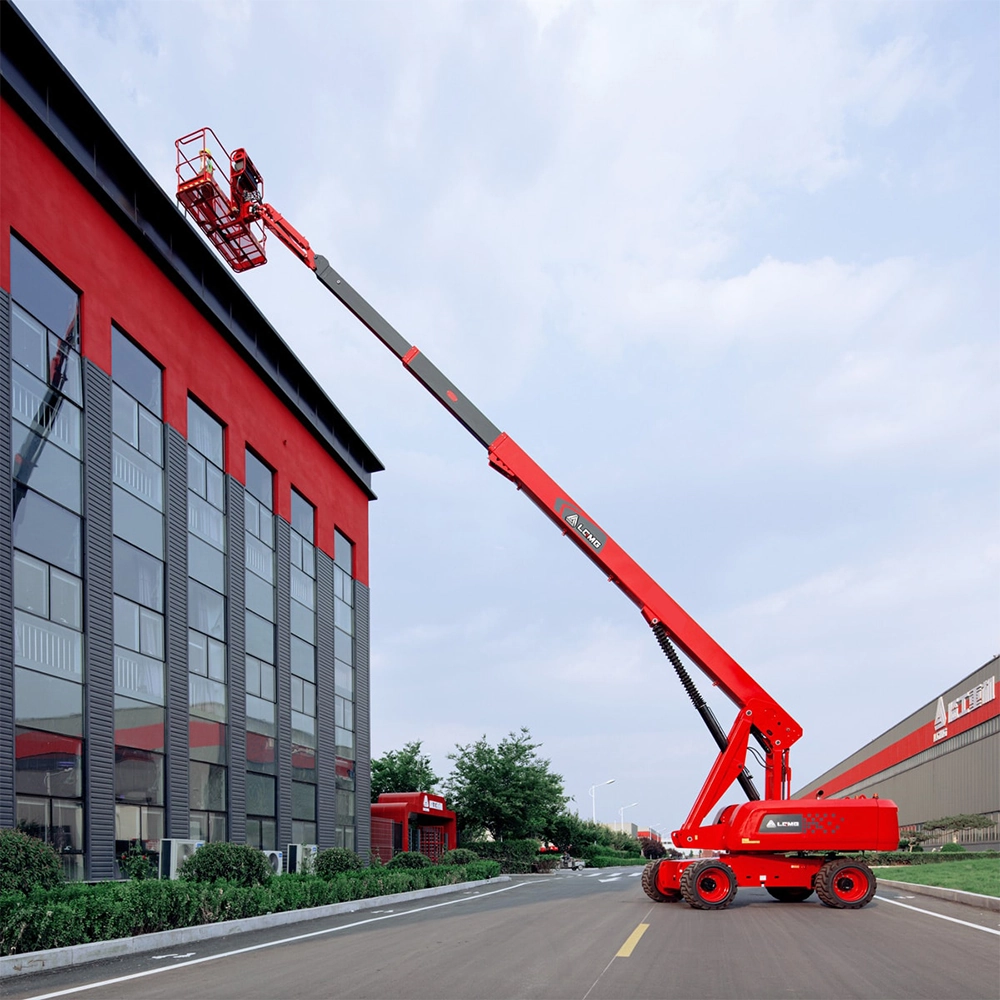

65' Telescopic Boom Lift - Image 2

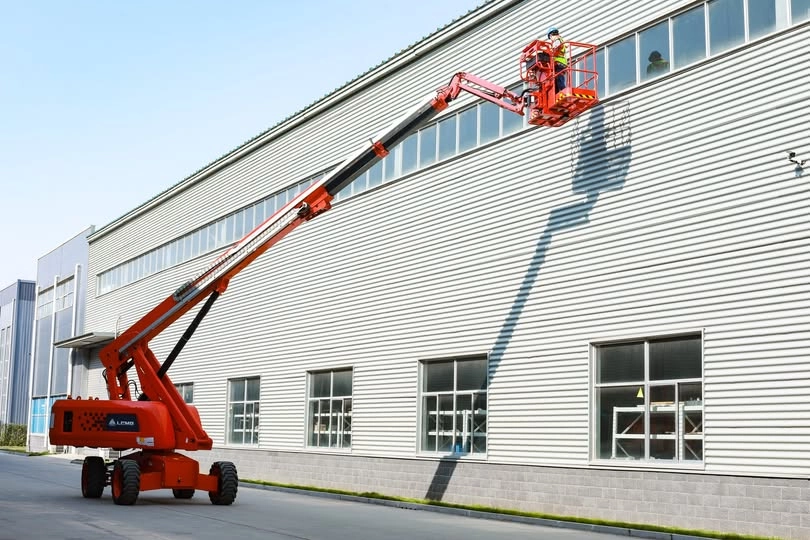

65' Telescopic Boom Lift - Image 3

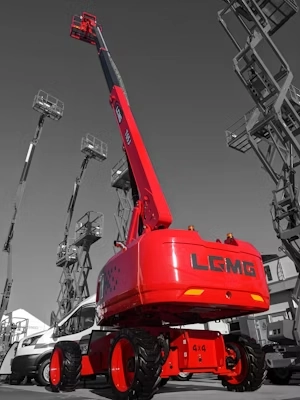

65' Telescopic Boom Lift - Image 4

65′ Telescopic Boom Lift

Rental Rates
$450.00 / Day
$900.00 / Weekend
$1,800.00 / Week
$5,400.00 / Month

  • The oscillating axels and four-wheel drive deliver better gradeability on rough terrain.
  • Proportional smooth driving, precise positioning and comfortable operation.
  • Continuous 360 turntable rotation expands the operational area and makes operations more convenient.
  • Swing out engine tray for easy access and maintenance.
  • Intelligent self-diagnostic system for quick troubleshooting.

Operation Manual

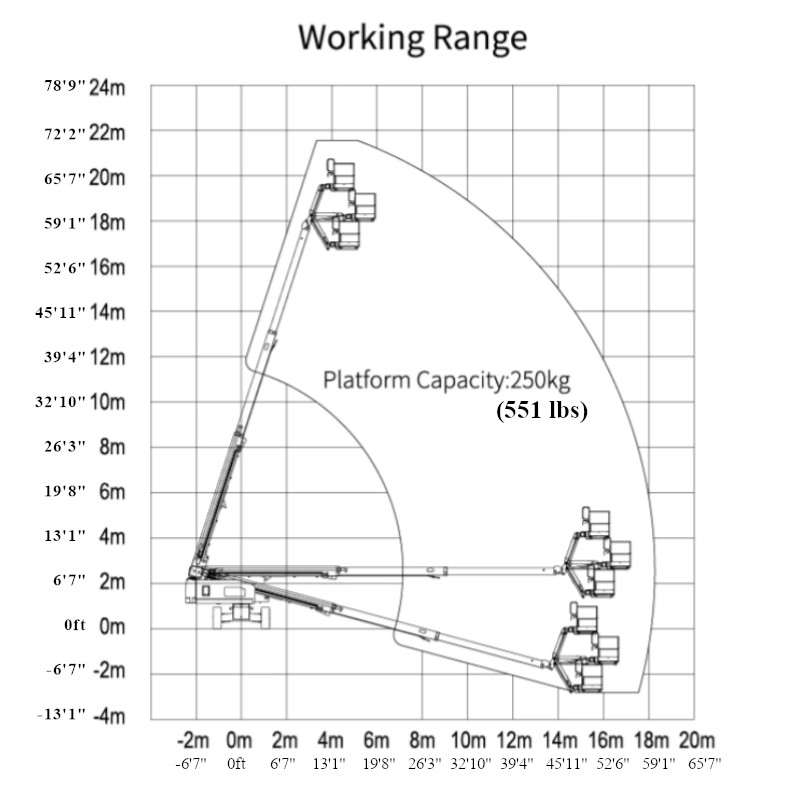

Range of Motion

Categories: , Tag:

The 65′ telescopic boom lift offers great outreach with high working efficiency. Its ability to operate on rough terrain enables the user to complete their tasks on time.

Mobile Elevated Work Platform Range of Motion

Check whether a selected machine's published working envelope can reach your required position.

Required Vertical Working Height
Required Horizontal Reach
Horizontal Distance Measured From
Approximate working-envelope selection aid
—
Working envelopeRequested position
Important: This calculator is an equipment-selection aid only. The plotted envelope is a simplified interpretation of the manufacturer's published working-range diagram. Actual reach and safe operation depend on machine setup, boom/jib position, outriggers, grade, obstacles, platform orientation and all manufacturer operating limitations. Always verify the current operator's manual and jobsite conditions before selecting or operating equipment.

Additional information

Work Height

71.2ft (21.7m)
Platform Height

64.6ft (19.7m)
Horizontal Reach

56.4ft (17.2m)
Below Ground Reach

8.92ft (2.72m)
Platform Size

30” x 72” (0.76 x 1.83 m)
Stowed Width

8.186ft (2.495m)
Stowed Height

9.09ft (2.77m)
Stowed Length

31.07ft (9.47m)
Wheelbase

8.24ft (2.51m)
Ground Clearance

1.296ft (0.395m)
Rotation

360° Continuous
Weight

25,132 lbs (11,400 kg)
Gradeability-Stowed

45%
Turning Radius (Inside)

8.2ft (2.5m)
Turning Radius (Outside)

18ft (5.5m)
Drive Speed (Raised)

0.5 mph (0.8 km/h)
Platform Capacity

551 lbs (250 kg)
Maximum # of Persons

2
Tire Type

RT Foam-Filled
Tire Size

355/55D 625
Power Source

48.8hp (36.4kw)
Fuel Tank Capacity

26.4gal (100L)
Hydraulic Reservoir

47.5gal (180L)
