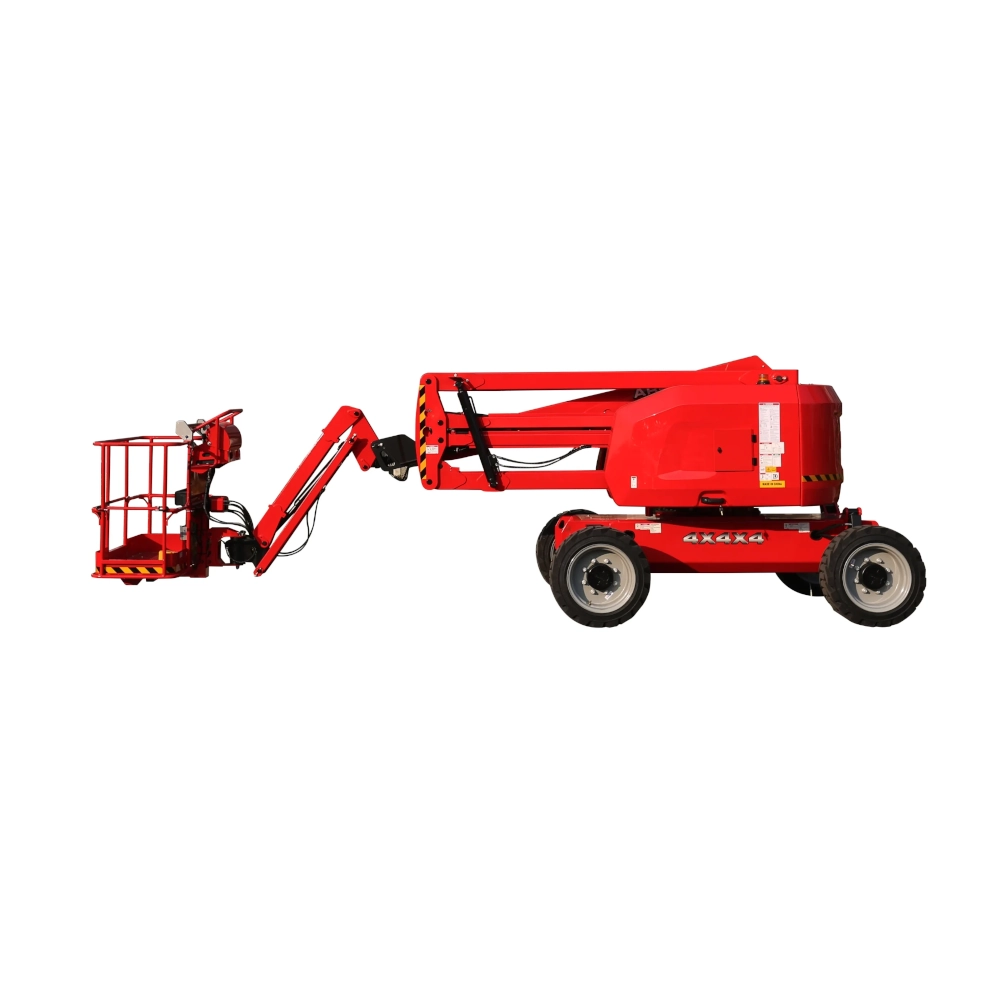

45' Articulate Boom Lift - High Capacity
45' Articulate Boom Lift - High Capacity - Image 2

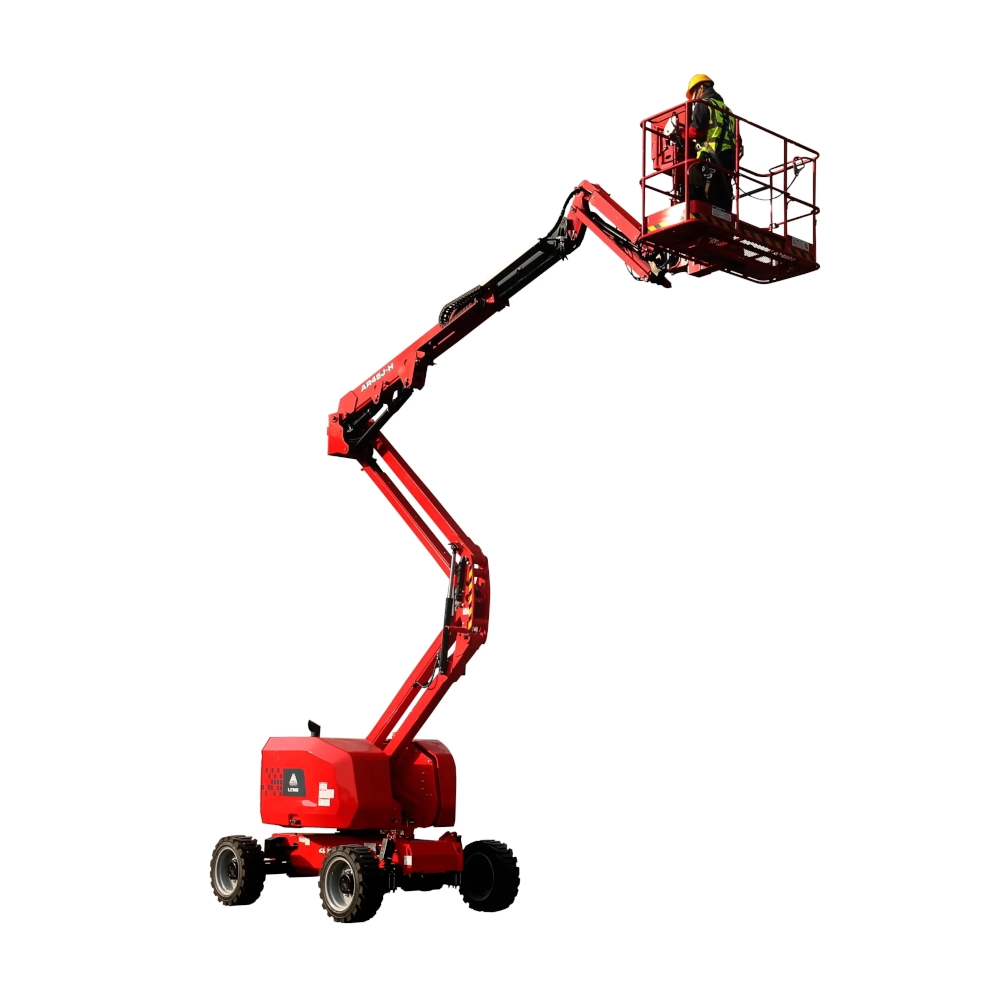

45' Articulate Boom Lift - High Capacity - Image 3

45′ Articulate Boom Lift – High Capacity

Rental Rates
$350.00 / Day
$600.00 / Weekend
$1,400.00 / Week
$4,200.00 / Month

  • Platform capacity: 992 lbs (450 kg)
  • Proportional smooth driving, precise positioning and comfortable operation.
  • Self-leveling platform together with hydraulic platform rotation delivers exceptional productivity.
  • Swing out engine tray for easy access and maintenance.
  • Intelligent self-diagnostic system for quick troubleshooting.

Operation Manual

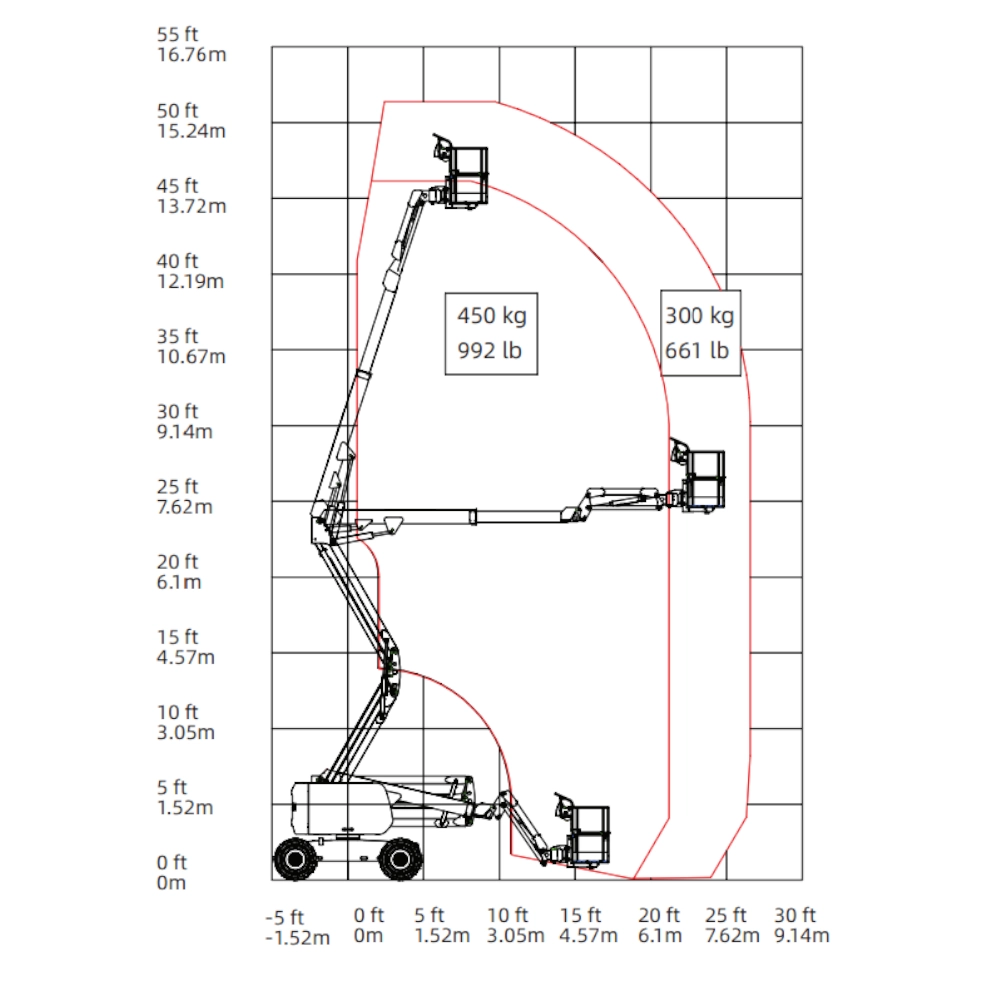

Range of Motion

Categories: , Tag:

This articulating boom lift is purpose built for outdoor construction and industrial applications. Its simple and reliable design paired with industrial features make this machine easy to operate, allowing it the ability to reach even the most hard to reach places.

Mobile Elevated Work Platform Range of Motion

Check whether a selected machine's published working envelope can reach your required position.

Required Vertical Working Height
Required Horizontal Reach
Horizontal Distance Measured From
Approximate working-envelope selection aid
—
Working envelopeRequested position
Important: This calculator is an equipment-selection aid only. The plotted envelope is a simplified interpretation of the manufacturer's published working-range diagram. Actual reach and safe operation depend on machine setup, boom/jib position, outriggers, grade, obstacles, platform orientation and all manufacturer operating limitations. Always verify the current operator's manual and jobsite conditions before selecting or operating equipment.

Additional information

Work Height

51’7” (15.9 m)
Platform Height

45’7” (13.9 m)
Horizontal Reach

25'3” (7.7 m)
Up and Over Height

24’3” (7.4 m)
Platform Size

30” x 72” (0.76 x 1.83 m)
Stowed Width

7'7" (2.31 m)
Stowed Height

7'4" (2.24 m)
Stowed Length

22’ 10” (6.95 m)
Wheelbase

7'5" (2.25 m)
Ground Clearance

1'2" (0.35 m)
Rotation

355°
Weight

16,314 lbs (7,400 kg)
Gradeability

45%
Turning Radius (Inside)

5'6" (1.67 m)
Turning Radius (Outside)

12' (3.66 m)
Drive Speed (Raised)

0.5 mph (0.8 km/h)
Platform Capacity

992 lbs (450 kg)
Maximum # of Persons

3
Tire Type

RT Foam-Filled
Tire Size

315/55D20
Engine

48 HP
Fuel Tank Capacity

17.2 gallon (65 L)
Hydraulic Reservoir

19.8 gallon (75 L)
