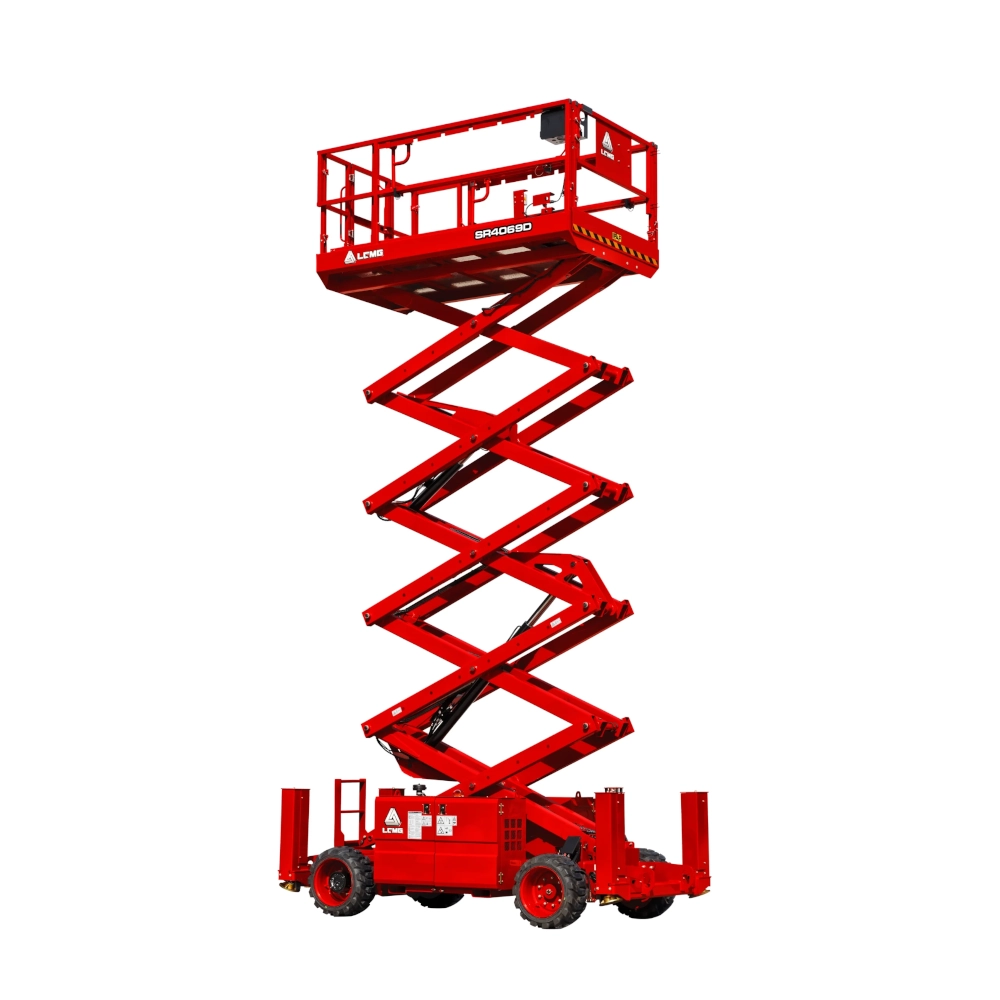

40′ Scissor Lift – Rough Terrain

Rental Rates
$200.00 / Half Day
$300.00 / Day
$500.00 / Weekend
$1,200.00 / Week
$3,600.00 / Month

  • High capacity, large platform with compact design maximizes productivity.
  • Dual fuel independent supply system, driven by gasoline or LPG.
  • 805 lbs weight capacity
  • The overload system and motion alarm help the operator to complete the job in a much safer way.
  • Drive up and over 35% inclines
  • We deliver

4×4 all-terrain scissor lift for rent in Mount Pearl, Newfoundland. This rough terrain scissor lift reaches 40 feet into the air. It’s large working platform and weight capacity of 825 lbs makes it ideal for lifting a team of workers and materials into the air to complete tasks.

The large working deck/platform measure 9.2 feet in length by 5’3″ wide. The deck can easily extend up to 5 feet. Although, the deck reaches 40 feet, we always remind the customer that the height of the user must be added to come up with the real working height – if the operator is 6 feet tall, you’ll be able to complete jobs 46 feet in the air.

What makes this scissor lift so unique is it’s ability to ride over large obstructions, like rocks, sticks, through mud and puddles. Drive up steep embankments of up to a 35% grade/slope. This makes it the ultimate aerial work platform for working outdoors on industrial jobsites. If you need to work indoors, you can conveniently switch the fuel from gasoline to propane.

Some of the safety features include: a tilt alarm that warns users that the lift is in danger of tipping, lanyard attaching points, operator horn, hinged railing system, overload sensing system that lets the operator know there is too much weight on the platform, and many others. This 4WD scissor lift is built for productivity in hard to reach areas with safety in mind.

This 40′ Rough Terrain Scissor Lift rental is available for delivery in greater St.John’s and the surrounding area. Customers can also come to our Topsail Rd location for pick up. Call today to check availability.

Additional information

Work Height:

45'7" ft (13.9 m)

Raised Platform Height:

39'1" (11.9 m)

Lowered Platform Height:

5'3" (1.6 m)

Overall Width:

5'10" (1.79 m)

Overall Length:

12'4" (3.76 m)

Weight:

11,244 lbs (5,100 kg)

Minimum Turning Radius:

15'7" (4.75m)

Capacity:

805 lbs (365 kg)

Maximum # of Persons:

3

Wheelbase:

7'6" (2.29 m)

Ground Clearance Center:

9" (0.23 m)

Extension Deck:

5' (1.52 m)

Platform W x L (Inside Dimension):

5'3" (1.6 m) x 9'2" (2.79 m)

Gradeability:

35%

Raise/Lower Speed:

61 / 55s

Tire Type:

RT Foam Filled

Tire Size:

26" x 12" (663 x 283mm)
