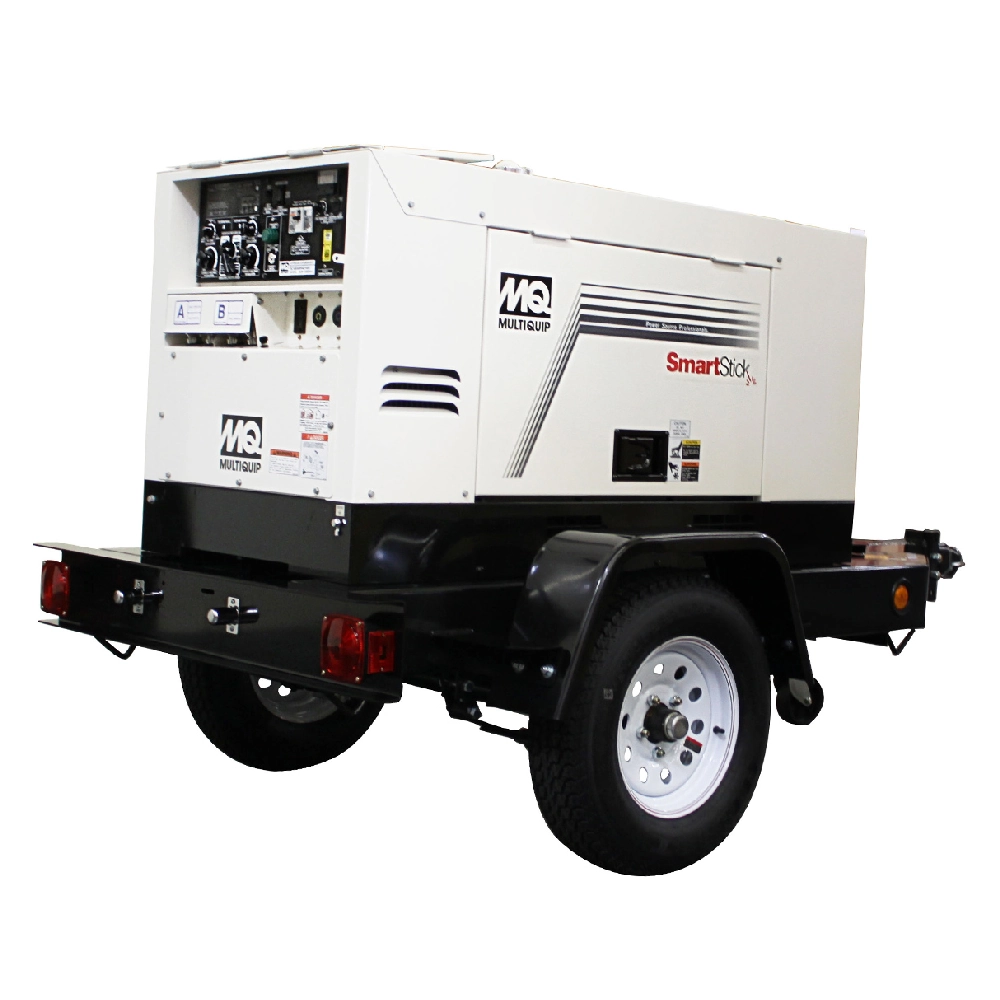

This CC (constant current) and CV (constant voltage) welder delivers up to 400 amps during single operation, or 200 amps to both outputs during dual operation. As a generator, this unit provides up to 14 kW of clean, 120/240 AC power. A digital panel display provides both amperage/voltage and troubleshooting information to the operator(s). Smart Stick, E-Mode, Arc Force are just some of the features of the DLW400ESA4 from Multiquip.
Welder – Towable 400 Amp w/14kW Generator
Rental Rates
$100.00 / Half Day
$125.00 / Day
$225.00 / Weekend
$500.00 / Week
$1,500.00 / Month
*** Rates based on single shift (8 hours/day or less) ***
- Delivers up to 400 amps as a welder with the convenience of 14 kW of AC power as a generator.
- Dual operator output ability.
- Can draw simultaneous AC power while welding.
- Smart Stick function automatically shuts the engine down during periods of no load.
- Amazing voltage regulation @ 1.5% (+/-).
- Sound attenuated cabinet reduces noise output to 70 dBA @ 23′.
- Full panel GFCI protection.
Additional information
| DC Voltage: | CC: Single 34V, Dual 27V V |
|---|---|
| DC Current: | CC: Single 400, Dual 200 A |
| Current Range: | Single 30-400, Dual 30-200 A |
| Max Duty Cycle w/ Full Amps Availible: | 100% @Single 350, Dual 175 A |
| Welding Processes: | SMAW |
| Fuel Tank Capacity: | 11.1 gal (42L) + 28 gal (106L) extended tank |
| Fuel Consumption at Rated Load: | 1.3 gph |
| AC Power Output (Single Phase): | 14 kW |
| Cycle: | 60 Hz |
| Voltage: | 120/240 V |
| Amperage: | 116/58 A |
| Voltage Regulation: | 1.5 % |
| Receptacles: | NEMA 5-20R 125V GFCI 20A |
| Overall Length: | 61 in (1550 mm) |
| Overall Width: | 29 in (737 mm) |
| Overall Height: | 35 in (890 mm) |
