Holder – B / C Series

Versatile, efficient and maneuverable: True year-round heroes, the Holder B and C Series multi-functional implement carriers score points on all levels. They’re comfortable while driving and operating, have a high power spectrum, from 57–65 HP, and a mechanical PTO shaft.

Holder C 70 Data Sheet

Description

FEATURES:

	3 Attachment Areas For flexibility when using high-performance attachments. 2 standardized attachment areas (front and rear lift) as well as 3rd attachment area for hitching devices. 1-person device mounting without tools. Front power lift is movable 3-dimensionally and double-acting, with vibration damping, arrester hooks adjustable from CAT IN to CAT I. Double-acting rear power lift with vibration damping, arrester hooks are adjustable from CAT IN to CAT I. Mechanical PTO shaft front (not B 55). Hydraulic PTO shaft rear.
	Comfortable Cabin Profit from a perfect view on attachments and maximum working comfort. Spacious comfort cab with air conditioning and 360° panoramic view. Side-opening windows. 3 seat variants: Single seat, two seats and movable seat. Air-suspension driver’s seat with seat heating, height-adjustable and length-adjustable, with longitudinal-horizontal suspension; optional 3-point safety belt. Heated front windscreen and exterior mirrors. LED driving and work lights. DAB+ radio with Bluetooth hand-free equipment.
	Ergonomic operating console Intuitive operation enables minimum fatigue and easy operation. Adjustable armrest mounted to the seat. 1-hand operation. The most important functions on the joystick including forward/reverse, speed and constant drive control and operation of the control valves. Drive program control for four or five driving and working steps. Including limit load control: adjusts the driving speed to performance on the front attachment automatically.
	Easy service access Daily servicing work is possible without disassembling the attachments. Hydraulically tiltable engine compartment cover with integrated tipping framework even when the attachment is mounted. Hydraulically tiltable cab. Tanks which can be swung out on both sides. Battery is accessible from the outside for e.g. jump starting during winter.
	PowerDrive – exclusively available for the C 70 Less fuel consumption, more power. Thanks to the four 400 cm³ strong wheel motors, the PowerDrive has 40 % more towing power and 50 % more climbing capability than regular all-wheel drives. In transport mode the torque of the wheel motors is halved and the rear axle deactivated leading to fuel savings in excess of 30 %. Available for the C 70. Since switching between all-wheel and two-wheel drive the driver can focus fully on the application or the road. Including four-wheel brake for more safety. Better climbing capability. More towing power. Huge driving and working comfort. Reduced engine noise and fuel consumption in transport mode.
	Smart drive technology Power, safety, comfort and convenience – both on the road and at work. Continuously variable hydrostatic drive with work and transportation settings. In working mode, the electronic speed control system ensures that the machinery is precisely driven, reducing both the noise level and fuel consumption. Differential lock can be applied to both axles. Electronic load limit control automatically regulates the travel speed while working and therefore allows for relaxed and non-tiring work.

ADVANTAGES:

	Articulated Steering Front and rear sections as well as front and rear attachment move in on line. Ensures maneuverability, accuracy, directional stability, very small turning circles and optimum power transmission. You benefit from: less maneuvering, less manual re-working, precise working close to the edge, protection of the soil and minimum tire abrasion.
	Mechanical PTO shaft at front Ensures constant power transmission to the attachments and a very high efficiency. You benefit from: attachment of large and heavy devices, lower heat input into the hydraulics, longer work intervals, lower fuel consumption.
	High performance hydraulics Up to 80 litres/minute and 3 separate hydraulic circuits enable the operation of attachments with large oil quantities such as sweeping/suctioning combination, together with other hydraulically operated attachments. At the same time, a third application can be operated via the PTO shaft.

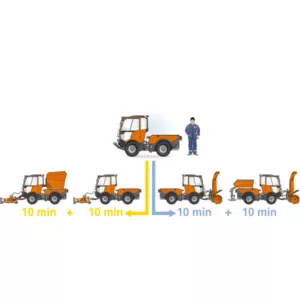

	Quick change of attachments Thanks to a sophisticated design with standardized interfaces, Holder attachments can be changed quickly and easily. Front attachments are suspended on the front lift via two arrester hooks and fixed on the top link by means of bolts. Rear attachments such as platform, container or spreader are simply placed on the slide-on frame and are fixed by means of two bolts. Finally, the hydraulic hoses have to be attached to the non-drip plug-in couplings.
	Four wheels of the same size Ensure perfect traction, especially on a hill. Even weight distribution across all four wheels. You benefit from: increased climbing ability, optimum protection of the soil, low tire abrasion.

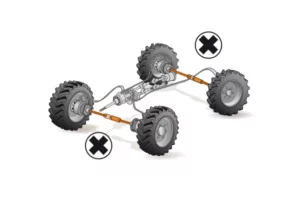

	Mechanical differential lock Ensures an even power transmission onto both axles under extreme conditions. You benefit from: optimum traction, reduced accident risk; differential lock can be activated at any time via a toggle switch.
	Permanent four-wheel drive Ensures optimum power distribution on all four wheels. You benefit from: maximum pulling force even on difficult soil, best traction, high climbing ability, optimum protection of the soil.
	Stepless driving up to 40 km/h No traction interruptions. Transport: automotive driving via foot pedal. Working: speed control via rotary potentiometer. Alternatively, speed control via foot pedal at constant PTO shaft speed = SDS traction drive.
	Electro-hydraulic attachment relief Weight of the attachment can be transferred to the entire vehicle steplessly. Due to the electro-hydraulic control, the composition of the soil is maintained optimally. You benefit from: more traction on inclinations and for slippery ground, protection of the device (e.g. mulching), increased stability when turning around on a hillside.
	Vibration damping via the front power lift Ensures that the weight of the front device acts on the accumulator of the hydraulics when driving on the road. The system dampens vibrations and balances most body movements of the vehicle on uneven roads or at high speeds. You benefit from: excellent comfort for the driver and protection of the entire device when working and driving with heavy attachments.
	Wheel load compensation Ensures that all four wheels are in permanent contact with the ground, even in case of steep or uneven terrain and when driving over obstacles. You benefit from: safety when turning on a hill, when driving over curb stones and when using large attachments with a high center of gravity. in addition, rolling movements are dampened when driving on the road.
	Multi-functional joystick Ensures ergonomic operation of devices. You benefit from: quick and accurate operation of all important functions.
