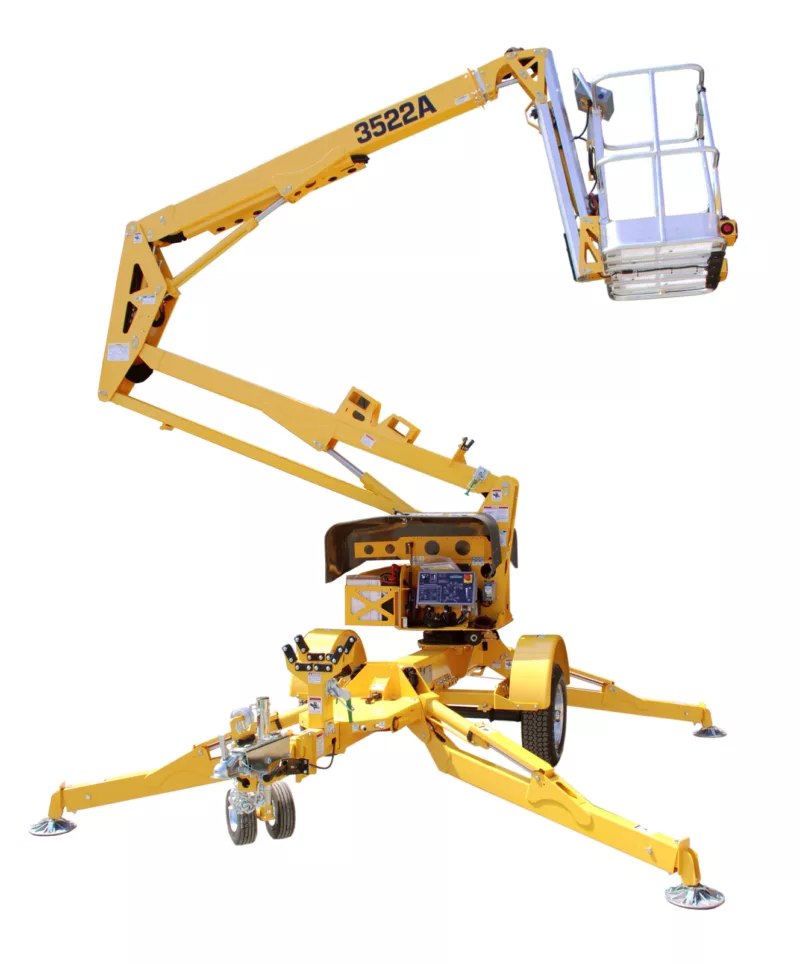

35' Towable Boom Lift
35' Towable Boom Lift - Image 2

35′ Towable Boom Lift

Rental Rates
$150.00 / Half Day
$225.00 / Day
$375.00 / Weekend
$900.00 / Week
$2,700.00 / Month

  • Can be towed by a standard half-ton pickup truck
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Exceptional productivity
  • Superior combination of industry leading capacity and outreach
  • Air / water lines and 110V GFI protected power to the platform

Operator’s Manual
Range of Motion & Data Sheet

Categories: , Tag:

Portable, towable boom lift with hydraulic outriggers. Great for the construction maintenance jobs or residential projects. A popular piece of equipment used by customers for exterior lighting and painting.

Mobile Elevated Work Platform Range of Motion

Check whether a selected machine's published working envelope can reach your required position.

Required Vertical Working Height
Required Horizontal Reach
Horizontal Distance Measured From
Approximate working-envelope selection aid
—
Working envelopeRequested position
Important: This calculator is an equipment-selection aid only. The plotted envelope is a simplified interpretation of the manufacturer's published working-range diagram. Actual reach and safe operation depend on machine setup, boom/jib position, outriggers, grade, obstacles, platform orientation and all manufacturer operating limitations. Always verify the current operator's manual and jobsite conditions before selecting or operating equipment.

Additional information

Working height

41 ft 9 in
Platform height

35 ft 9 in
Horizontal outreach (from centerline)

22 ft 6 in
Horizontal outreach (from edge of footpad)

17 ft 5 in
Up and over height

19 ft
Lift capacity

500 lb
Maximum Allowable Wind Speed:

45 km/h (28 mph)
Length - stowed

16 ft 3 in
Width stowed

5 ft 6 in
Height stowed

6 ft 8 in
Platform size

4 ft 1 in x 2 ft 9 in
Turntable rotation

350° non-continuous
Jib - length

4 ft 3 in
Jib - Vertical Motion

150° (+ 70 / – 80)
Tow speed rating

65 mph
Leveling capability

12.5 °
Tire size

ST 225 / 75 D15
Power source

4 x 6 V 245 amp-hr
Tongue weight (no options)

245 lb
Weight (no options)

3,400 lb
Widest Point

11 ft 10 in
